Swing Gate ML-Pass

SecurSCAN® ML-Pass

Gates and Doors SecurSCAN® ML-Pass

SecurSCAN® ML-PASS is a bidirectional (two-way) swing gate with motorized operation, designed to control access points used for pedestrian traffic as well as for goods delivery.

SecurSCAN® ML-PASS features a heavy-duty construction in AISI 304 stainless steel and an operating mechanism properly designed to withstand high mechanical stress.

If you need to restrict access to authorized personnel only, SecurSCAN® ML-PASS easily integrates with all biometric (fingerprint, iris or facial recognition) or RFID iAccess access control systems. A remote control option is also available

SecurSCAN® ML-PASS is the ideal solution to secure:
  • Shopping centers/malls, grocery and retail stores, parking lots
  • Swimming pools, sports facilities, wellness centers, spas
  • Amusement parks, stadiums

SecurSCAN® M-PASS perfectly integrates with all iAccess access control systems. For further information please visit


Stainless Steel swing gate SecurSCAN® ML-Pass


  • Bidirectional (two-way), automatic, power-assisted operation
  • Entirely made of AISI 304 stainless steel with variable thickness (1.5 mm to 2.0 mm/0.0590 ″ to 0.0787 ″)
  • Can be interfaced with any access control system
  • Fail-safe configuration (unlocks in case of emergency, allowing free passage in both directions)
  • Gate arm operation: automatic self-closing or controlled closing
  • Floor fixing with expansion anchors
  • Connection cables exit at the bottom of the turnstile
  • Operating temperature range: −20 °C to 60 °C (−4 °F to 140 °F)
  • Throughput rate: 30 to 40 people per minute
  • Power supply: 220 V single phase, 50 Hz
  • Supply voltage: 24 V DC
  • Power consumption: 30 W

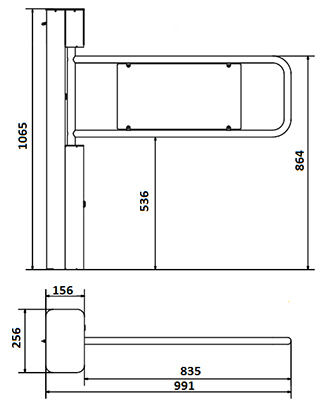

  • Dimensions (L x W x H): 991 x 256 x 1065 mm (≈39 ″ x 10 ″ x 42 ″)
  • Weight: 40 kg (≈88 lbs.)
  • Gate arm width: 835 mm (≈32.9 ″) – Provides safe passageway for people with disabilities
