Professional X-Ray control system - XRC 150 165

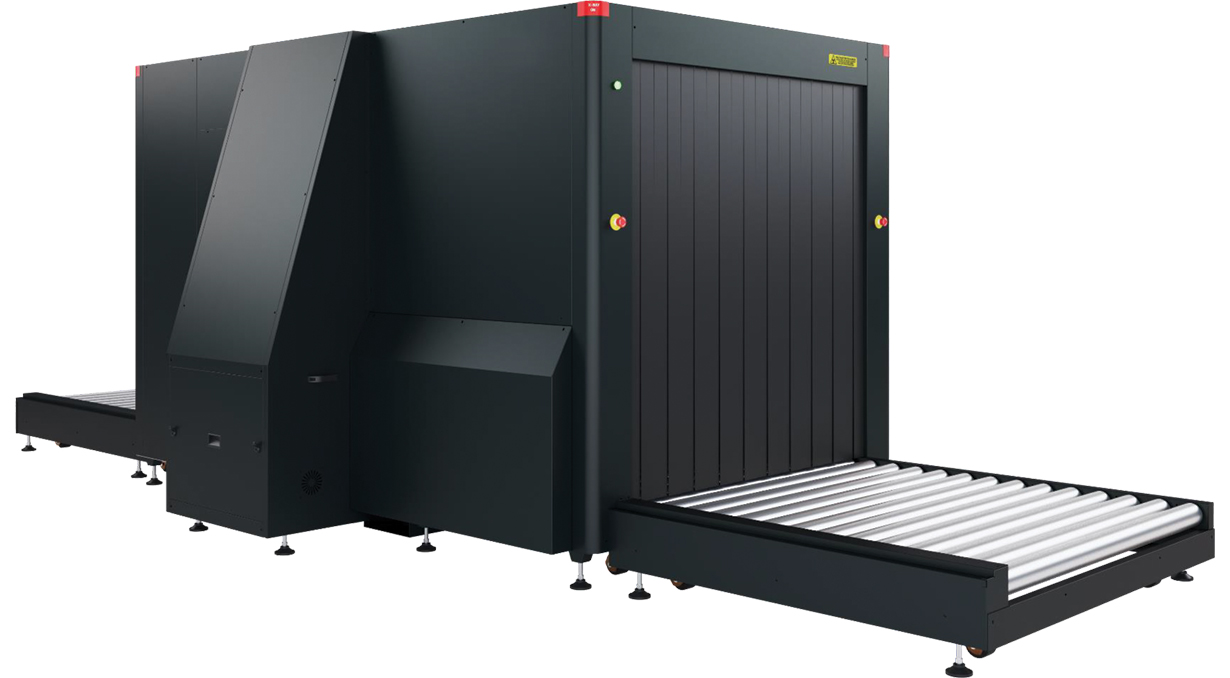

SecurSCAN XRC150-165

Professional X-Ray control system - XRC150-165
  • Dimensions: 335 x 288 x 217 cm. (L x W x H)
  • Tunnel Dimensions: 135.5 cm. (W) x 165.5 cm. (H)
  • Approx. Weight Unpacked: 2000 kg.
  • Conveyor Speed: 0,10 mt/sec.
  • Conveyor Load Capacity: 3000 kg. (evenly distribuited)
  • Conveyor Height: 30 cm.
  • System Power: 230VAC +/- 10% / 60-50 Hz


SecurSCAN XRC150-165 is a large-sized X-Ray control apparatus, whose dimensions make it suitable only for security checks of large parcels and pallets of goods, in places such as:

  • Freight Terminals
  • Storage
  • Storage Areas
  • Customs

The large size does not make it any less effective in detecting also small objects, guaranteeing an accurate location and a precise and detailed representation of the objects.

Weapons, Drugs, Ambiguous Objects, Detonators, Rudimentary Explosive Devices and Electronic Devices are just a few examples of what XRC150-165 is able to analyse.

SecurSCAN XRC150-165 is the large-sized X-Ray security system chosen the most by Customs and Maritime Companies.
It detects:

  • Smuggled Items
  • Handcrafted and conventional Explosive Weapons and Ordnances
  • Powdered, liquid and solid drugs
  • Organic and inorganic material

SecurSCAN XRC150-165 is the most efficient large-sized X-Ray system, and is ideal to be installed in all places with a high potential "risk of terrorist attack", as well as in strategic and warehousing centres where the transit of illegal goods and objects are commonplace.


Standard Features:
  • Programmable Function Keys
  • Parcel Counter
  • Date and Time Display
  • Virtual Threat Image Projection (TIP)
  • Organic/Inorganic Threat Alarm
  • Operator Training Program (OTP)
  • Self Diagnosis
  • Generator Timer
  • Automatic Stop Conveyor
X-Ray Generator and Image Performance
  • 1.Steel penetration: 30 mm. guaranteed / 33 mm. Typical
  • 2.Spatial Resolution: 38 AWG guaranteed / 40 AWG typical
  • 3.Cooling: Sealed oil bath
  • 4.Anode Voltage: 160 KV
  • 5.Tube Current: 1 mA
  • 6.X-Ray Direction: Horizontally
Optional Features:
  • Barcode Reader System
  • External Camera Archiving
  • Remote Viewing Station
  • Recheck Station
  • Network Supervisory System (NSS)
  • Remote Access Connection
  • Smart Card Login
