Security Metal Detector SecurSCAN Fast Gate Z8

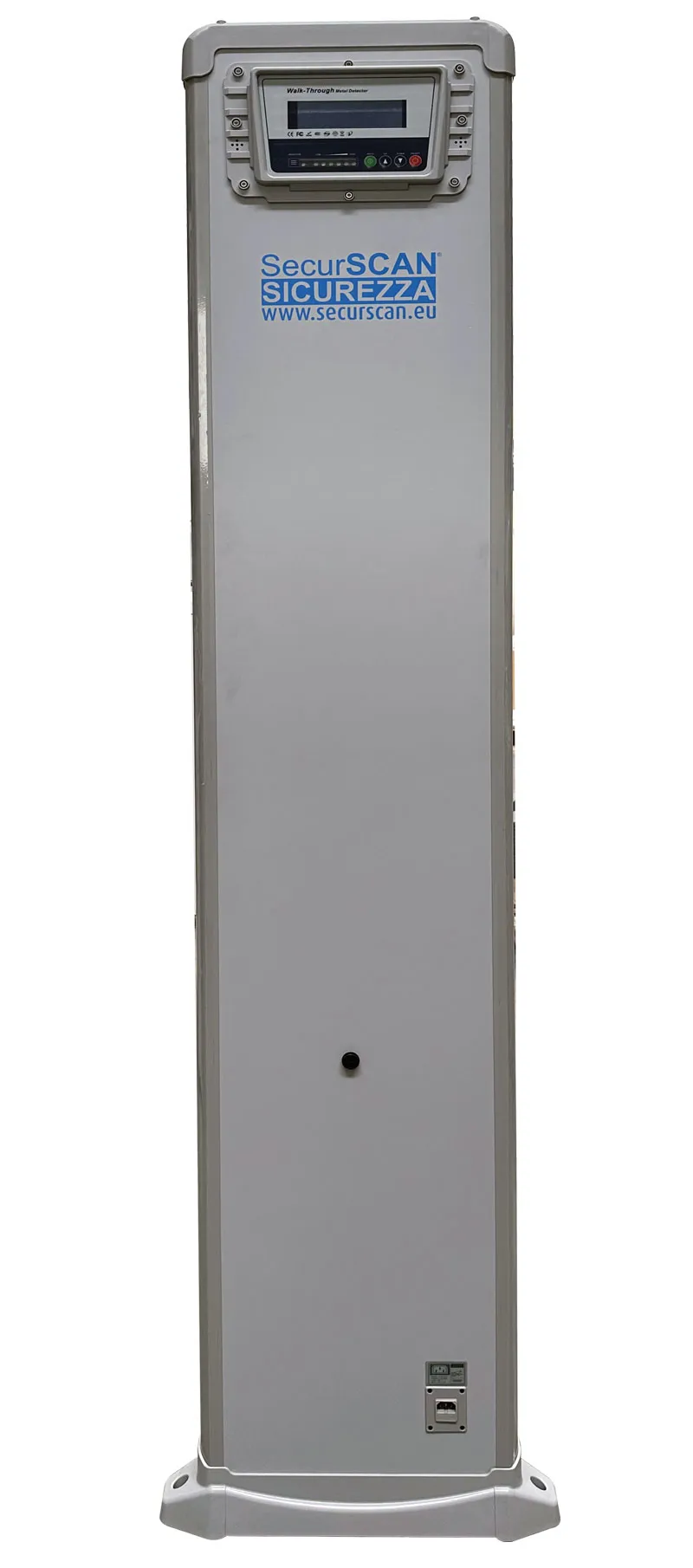

SecurSCAN® Fast Gate Z8

Fast Gate Z8 is a device for the automatic control of people via a single multidimensional antenna.

Ideal for Pre Screening in areas with high transit flow, it can detect all types of metal present under people's clothing or carried inside bags , suitcases and trolleys.
Its sensitivity allows the detection of weapons of any size, but more typically it is used to detect mass shooting weapons, such as assault rifles, large caliber weapons and IED devices.

Thanks to its simplicity of installation and configuration it can be quickly moved and repositioned where necessary, and is ready for use in a few seconds. FastGate Z8 is ideal as a high security garrison of areas open to the public, with large numbers of people entering.

Main Features
  • External dimensions: 200x43 cm. (HxP).
  • Infrared start/stop function.
  • 6 detection zones.
  • Detection distance: within 60 cm.
Technical Specifications
  • Dimensions: 200x43 cm. (AxP)
  • Weight: 20 kg.
  • Power supply: AC90V-240V 50-60Hz
  • Power consumption: 12W
  • Operating frequency: 1—50 bands
  • Operating temperature: -20 to +65 ° C
  • Detection accuracy: max sensitivity ≥10 g (metal)


Main Advantages of Fast Gate
  • 8 distinct detection zones
  • Adjustable sensitivity, from 0 to 255
  • High brightness LED
  • Possibility to operate 24 hours a day
  • Powered by electricity or rechargeable batteries
  • Possibility of installing multiple elements in line
