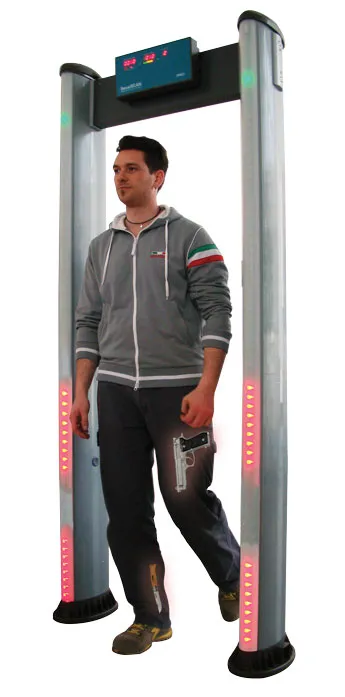

Walk Through Metal Detector SY-603

SecurSCAN® SY 603

The SecurSCAN SY-603 is a new high sensitivity multi zone security metal detector for indoor and outdoor use.
There are 6 detecting areas spreading evenly over the left-right detecting gatepost from its top to bottom. Each areas could be set indipendetly from 0 to 99 sensitivity level.
There are built-in LED indicating lights in both sides of detecting gate. The left-right detecting gatepost is formed up by unified mold, and each of other parts is utilizing waterproof designs.
More units SecurSCAN SY-603 could be installed close in a line without problems and interference.
All the parameters could be change by a remote controller, simple and easy.
SecurSCAN SY-603 does no harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc, etc…


Technical Data
  • 6 detection areas
  • Passage dimensions: 200 x 72 cm. (H x W)
  • External dimensions: 226 x 102 x 34,5 cm. (H x W x D)
  • Weight: 70 kg.
  • Packaging dimensions: 230 x 50 x 47 cm. (H x W x D)
  • Weight packed: 85 kg.
  • Working power: AC 110 to 220V, 30W
  • Working temperature: -20 to 55°C
