Professional X-Ray control system - XRC90-75

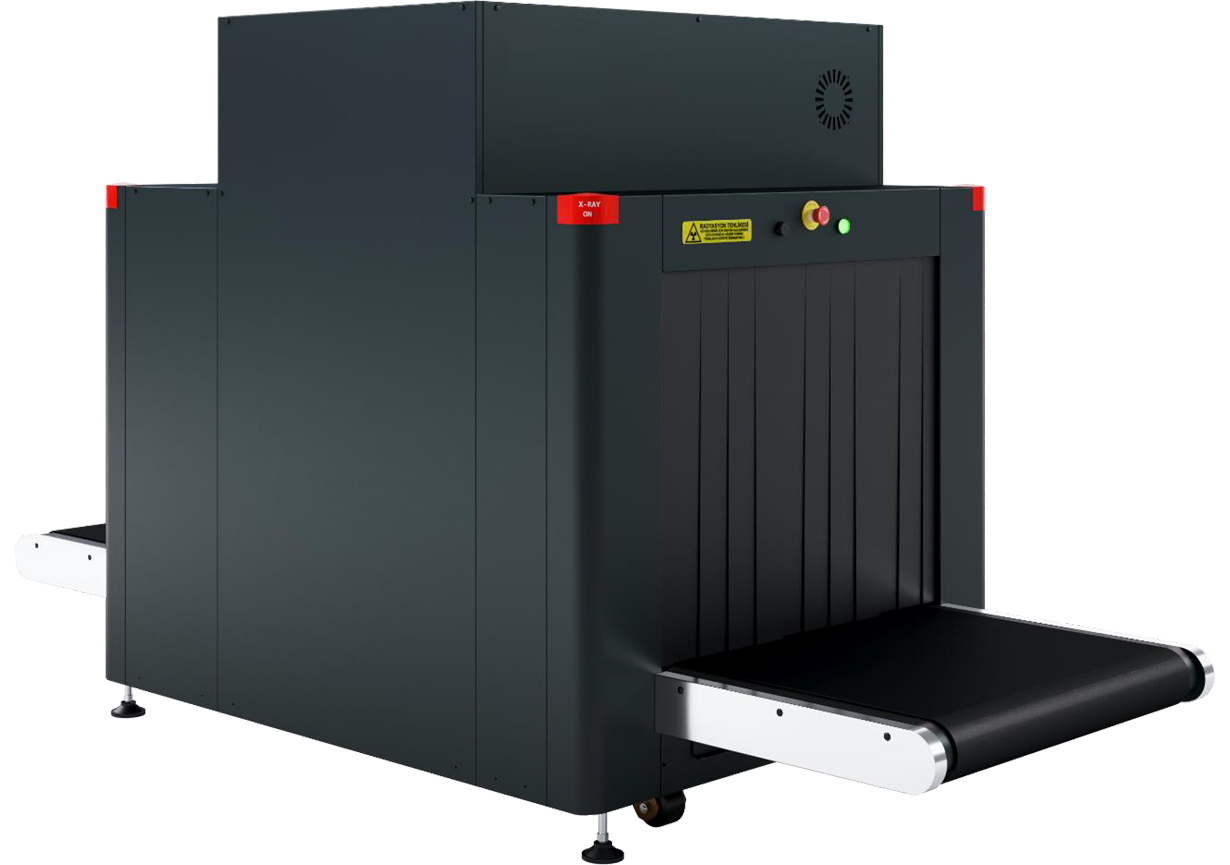

SecurSCAN® XRC90-75

Sistema Professionale di Controllo a Raggi X - XRC95-75
PHISICAL PROPERTIES
  • Dimensions: 215 x 102 x 147 cm. (L x W x H)
  • Tunnel dimensions: 90 x 75 cm. (L x H)
  • Weight: 1100 kg.
  • Conveyor Belt Speed: 0.20 mt/sec.
  • Conveyor Belt Load Capacity: 165 kg. distributed
  • Conveyor Belt Height: 34 cm.
  • Power supply: 230VAC +/- 10% / 60-50 Hz

SecurSCAN XRC90-75 is an X-Ray system designed for security checks at your premises:

  • Logistic Warehouses
  • Storage and Warehousing Centres
  • Sorting Goods and Customs
  • Stopovers and embarkations by rail, sea, airport

SecurSCAN XRC90-75 is the most advanced and reliable medium-sized X-Ray security system on the market at present.

It is designed to detect any material illegally hidden inside large luggage, medium-large parcels, groupage, packaging.

It detects:

  • Counterfeit and Smuggled Objects
  • Conventional and handcrafted Explosive Weapons and Ordnances
  • Solid, liquid, powdered narcotic substances.

SecurSCAN XRC90-75 can be easily installed in all "sensitive" places considered at risk of terrorist attack, but also in those strategic centres where illegal objects regularly pass through.

X-Ray Generator and Image Performance
  • 1.Steel penetration: 35 mm. guaranteed / 36 mm. Typical
  • 2.Spatial Resolution: 36 AWG guaranteed / 40 AWG typical
  • 3.Cooling: Sealed oil bath
  • 4.Anode Voltage: 170 KV
  • 5.Tube Current: 1 mA
  • 6.X-Ray Direction: Vertically upwards
Specifications:
  • Dimensions: 215 x 102 x 147 cm. (L x W x H)
  • Tunnel dimensions: 90 x 75 cm. (L x H)
  • Weight: 1100 kg.
  • Conveyor Belt Speed: 0.20 mt/sec.
  • Conveyor Belt Load Capacity: 165 kg. distributed
  • Conveyor Belt Height: 34 cm.
  • Power supply: 230VAC +/- 10% / 60-50 Hz
