Professional X-Ray control system - XRC85-85 VAN

SecurSCAN® XRC85-85 VAN

SecurSCAN XRC85-85VAN is a mobile X-Ray security unit, suitable for:

  • Sporting Events
  • Musical Events
  • Theatre Festivals
  • Exhibitions

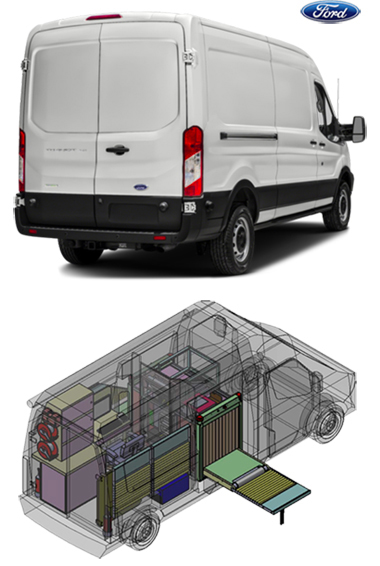

It is an actual station (van with x-Ray incorporated), therefore ideal for use by Supervisory and Security bodies to guard entrances to areas at risk of riots or attack.

It locates:

  • Melee weapons and Guns
  • Hand-made and conventional ordnance
  • Narcotic substances
  • Dangerous, illegal, unwelcome objects

It also includes an advanced operator training software with a database of thousands of potentially dangerous objects.

ASK FOR MORE INFORMATIONS

X-Ray System Specifications
  • Tunnel dimensions: 85 x 85 cm. (L x H)
  • Weight: 3500 kg.
  • Conveyor Belt Speed: 0.20 mt/sec.
  • Conveyor Belt Load Capacity: 200 kg. distributed
  • Power supply: 230VAC +/- 10% / 60-50 Hz
  • Steel penetration: 30 mm. guaranteed / 33 mm. Typical
  • Spatial Resolution: 36 AWG guaranteed / 38 AWG typical
  • Cooling: Sealed oil bath
  • Anode Voltage: 170 KV
  • Tube Current: 1 mA
  • X-Ray Direction: Diagonally downwards
Furgone Ford Transit 350LF
  • Engine: 130 HP, 320 Nm, Diesel
  • Emissions: Euro 5
  • Operators cab size: 4 m2
  • Length: 598 cm.
  • Width with / without mirrors 205 / 247 cm.
  • Height: 254 cm.
  • Interior height: 178 cm.
  • Maximum loading volume: 11.5 m3
