Motorized Barrier VS-Pass

SecurSCAN VS-Pass

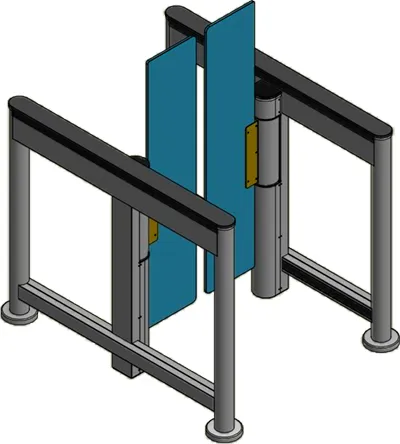

SecurSCAN® VS-PASS is an optical turnstile with motorized barriers entirely made of stainless steel with clear impact-resistant polycarbonate swing barriers.

It features a simple design and is suitable for any security access control application.

If you need to restrict access to authorized personnel only, SecurSCAN® VS-PASS easily integrates with any biometric (fingerprint, iris or facial recognition) or RFID access control system (

SecurSCAN® VS-PASS features standard passage widths of 60 cm (≈23.6 ″) or 90 cm (≈35.4 ″) to enable safe and smooth wheelchair access.

SecurSCAN® VS-PASS is an access control system made up of side cabinets which control the opening and closing of motorized polycarbonate swing panels.

Common Applications:
  • Business/management centers, office facilities
  • Airports, boarding gates, railway and underground stations
  • Shopping centers/malls, grocery and retail stores, parking lots
  • Swimming pools, sports facilities, wellness centers, spas, amusement parks, stadiums


  • Impact-resistant polycarbonate swing barriers, which can withstand high mechanical stress
  • Easily integrates with any access control system (biometric, RFID, hands-free proximity readers etc.)
  • Cabinet side panels made of shaped stainless steel
  • Cabinet top covers made of impact-resistant, shock-absorbing, scratch-resistant material
  • LED way-mode indicators (green arrow/red cross)
  • Tailgating detection with infrared sensors
  • Floor fixing with expansion anchors
  • Power supply: 220 V single phase, 50 Hz
  • Electromagnet voltage: 24 V DC - Power consumption: 140 W
  • Operating temperature range: 0 °C to 40 °C (32 °F to 104 °F)
  • Throughput rate: 30 people per minute
  • Protection rating: IP55 or IP65 (with optional enclosure)
