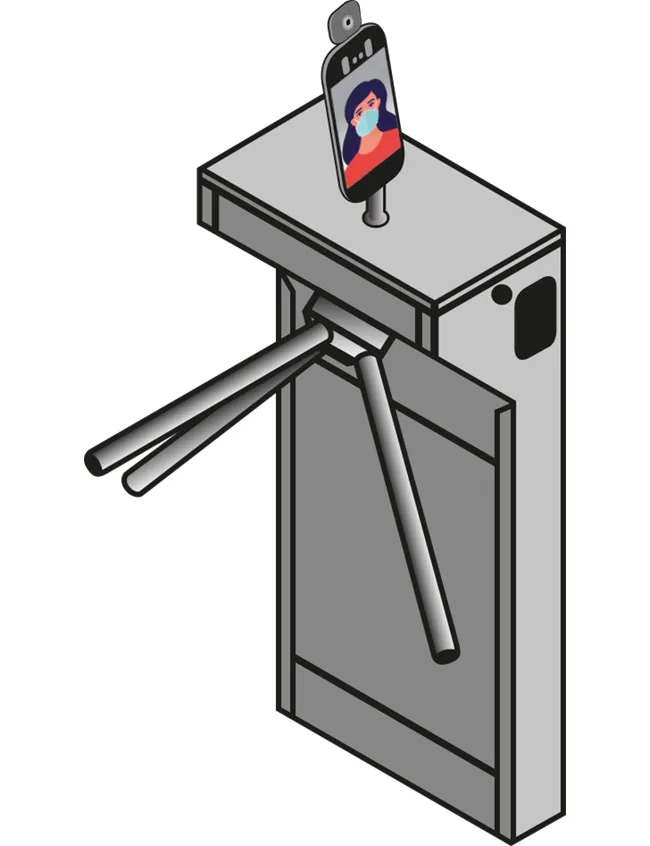

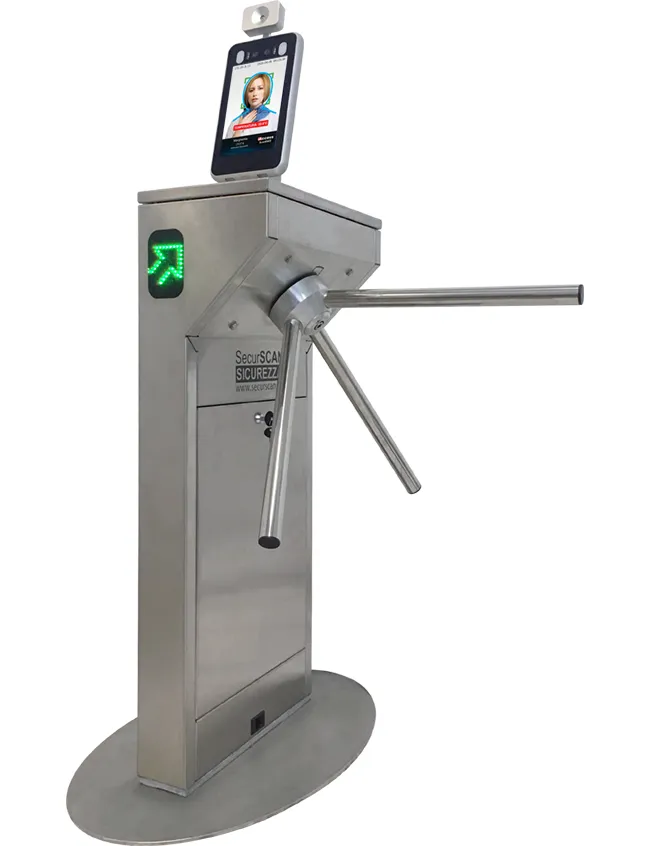

Turnstile TL-Pass with Thermoscanner

SecurSCAN® TL-Pass

Turnstile

The SecurSCAN TL-PASS turnstile can be equipped with the advanced iAccess ScanFACE thermoscanner for access control to sensitive areas, conceived to meet the security requirements during the COVID-19 virus pandemic.

The entirely touchless ScanFACE® terminal is a thermoscanner able to check instantaneously someone's body temperature when trying to enter the building and whether or not they are wearing a protective mask, thus denying or allowing access.

TL-PASS has a modern, ergonomic design which is made of AISI 304 stainless steel.

The iAccess access control scanner (www.iaccess.eu) is extremely useful in countering the spread of infectious diseases.

Where should a Turnstile with Thermoscanner be installed?
  • Hospitals, Factories, Universities
  • Commercial Buildings, Stations, Airports
  • Train Stations, Subways, Boarding areas

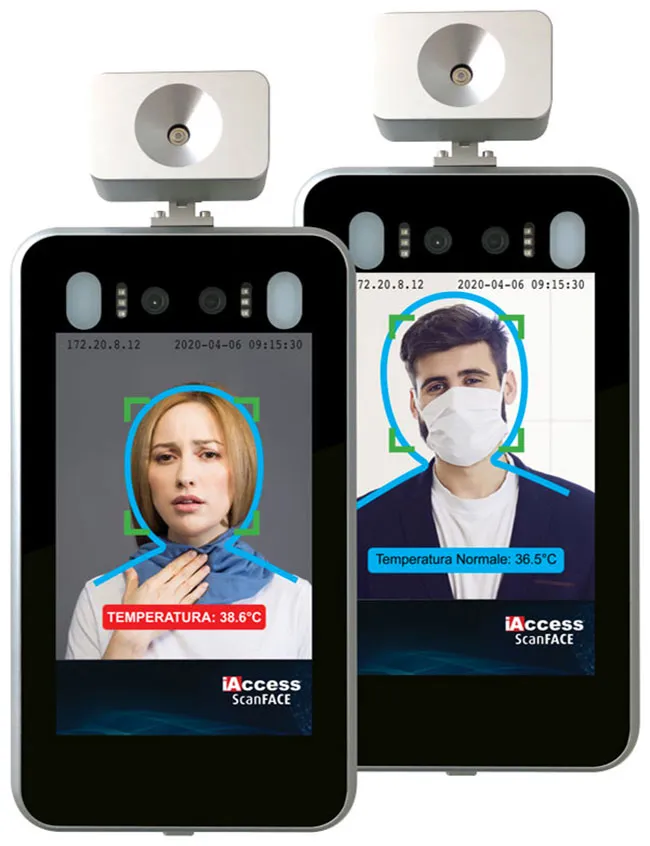

Turnstile TL-Pass with Thermoscanner iAccess ScanFACE®

ScanFACE is essential to protect workers' health and safety from the infection by Coronavirus.

ScanFACE can be configured to monitor only the temperature and the presence of the mask, or in order to satisfy all demands, it can also be configured to enable face recognition, for example in workplaces, to allow access only to employees.

Temperature recognition is highly accurate and practically instantaneous, as is the verification of the worn face mask.

For further information and full technical specifications see www.iaccess.eu

Benefits of Thermoscanner
  • Prevents the spread of infection
  • Protects your company and employees
Turnstile TL-Pass with Thermoscanner iAccess ScanFACE®
Specifications
  • Bi-directional electric passage release.
  • Made of AISI9 stainless steel
  • LED traffic lights with green/red signals.
  • Integrated iAccess® ScanFACE thermoscanner.
  • Ground fixing by means of expansion screws.
  • Connection cable exit from base.
  • Power supply: 220VAC / 24VDC
  • Electromagnets voltage: 24 Vdc - Power: 15W.
  • Tripod arm length: 430 mm.
  • Arm diameter: 32 mm to 38 mm.
  • Switch-off in case of emergency
  • Operating temperature: -20C° to +70C°.
  • Transit speed: 20-35 people per minute.
  • Degree of protection: IP55 - IP65 with optional cover.
  • Dimensions: 970x450x670 mm. (L x W x H) - Weight: 40 kg
